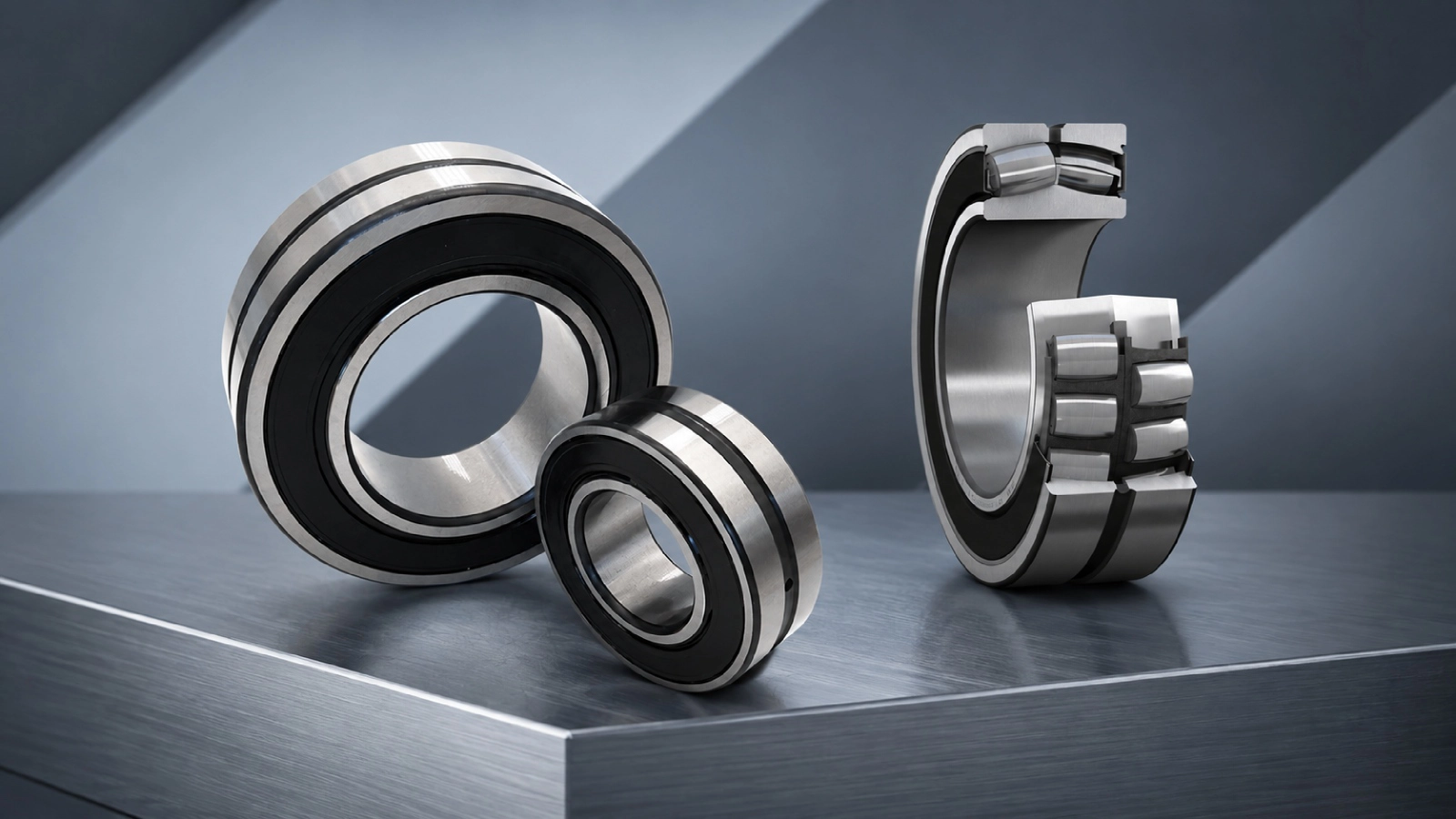

Sealed spherical roller bearings combine a self-aligning double-row roller design with integral sealing and a defined grease fill. They are useful where contamination control and lubricant retention are important, but the seal does not remove the need to check load, speed, temperature, fit, clearance, and relubrication strategy.
For overseas buyers, the complete code is essential. A wider sealed design, a standard-width execution, a tapered bore, a different seal material, or a different grease specification can change both installation and operating limits.
The outer ring has a spherical raceway, allowing the roller and inner-ring assembly to accommodate a defined amount of angular misalignment. Two roller rows carry high radial loads and axial loads in both directions within the selected bearing’s ratings.
Integral seals retain grease and limit the entry of dust, moisture, and other contaminants. However, seal friction may reduce permissible speed and increase operating temperature compared with a related open design. Therefore, buyers must evaluate the seal lips, grease, internal geometry, and available internal space as one system.
Sealed designs can be grouped by external width, bore, seal construction, and lubrication features. These details affect whether an existing housing, sleeve, and mounting method remain suitable.
| Configuration | Main feature | Ordering check |
| Integral sealed, cylindrical bore | Direct shaft seat with seals at both sides | Shaft fit, seal material, grease, and clearance |
| Integral sealed, tapered bore | Mounting on a tapered seat or adapter sleeve | Taper, sleeve, drive-up, and residual clearance |
| Wider sealed design | Extra internal width to accommodate seals | Overall width and housing space |
| Standard-width or removable-seal design | Sealing package intended around standard boundary dimensions | Exact manufacturer execution and installation method |
Some sealed bearings include relubrication features; others are intended for a defined grease-life strategy. Buyers should never assume “sealed” means maintenance-free under every load, speed, temperature, or contamination level.
Sealed spherical roller bearings are commonly used in conveyor pulleys, elevators, bulk-handling equipment, agricultural machinery, industrial fans, and process machinery. They are particularly useful in mining, cement, aggregate, and other dusty or contaminated environments where heavy loads, vibration, and particle ingress can affect bearing life.
Selection should consider water exposure, contamination, shaft deflection, vibration, shock loads, and relubrication access. The bearing seal also works as part of the overall sealing system. Proper housing fits, external seals, grease paths, and installation conditions remain important for reliable operation.
Begin with load and speed requirements, then check the seal material, operating temperature, and lubricant specification. SKF, for example, uses suffixes such as 2CS, 2CS2, and 2CS5 for different seal materials, while suffixes such as /VT143 identify grease specifications. Buyers should therefore retain the complete designation rather than shorten it to the basic bearing number.
Internal clearance requires particular attention with tapered bores because mounting reduces radial clearance. Confirm the initial clearance class, bore taper, mounting method, and required residual clearance. When replacing an open bearing with a sealed version, also verify the boundary dimensions. SKF BS2-designated bearings can have extended-width designs, so width should be checked from the complete designation and product data rather than assumed from the basic bearing series.
These examples show how different manufacturers express sealed spherical roller bearing families. They are identification examples, not automatic interchange approvals.
| Brand | Series examples | Complete model example |
| SKF | BS2-22 and BS2-23 sealed families; sealed 230, 231, and 232 variants | BS2-2224-2RS5/VT143 |
| FAG | WS222..-E1-XL-2RSR sealed spherical roller series | WS22220-E1-XL-2RSR |
| NTN | WA22200 and MX-W22200 sealed spherical roller series | WA22216EALLSD1/8A |
Preserve prefixes, seal codes, bore suffixes, grease codes, and clearance codes. Before using another brand reference, compare bore, outside diameter, width, load ratings, speed, seal material, lubricant, clearance, misalignment limits, and relubrication features.
SKF model BS2-2224-2RS5/VT143 shows why every section of a sealed designation matters.
| Code | Code section | Meaning |
| BS2 | Prefix | SKF sealed spherical roller bearing family |
| 22 | Series section | Spherical roller bearing dimension-series section |
| 24 | Bore section | Bore code corresponding to a 120 mm nominal bore |
| 2RS5 | Seal suffix | Contact seals made from HNBR on both sides |
| VT143 | Grease suffix | SKF LGEP 2 grease-fill specification for this execution |
The code does not by itself approve the bearing for a machine. Confirm the current technical data, especially speed, temperature, load, grease life, relubrication, housing space, and mounting instructions.
Keep the sealed bearing in its protective packaging until installation, and do not lift or press against seal lips. Apply mounting force only to the ring receiving the interference fit. For a tapered bore, use the manufacturer’s approved drive-up or clearance-reduction method and verify the final position.
Check that grease paths are compatible with the selected bearing. Do not mix grease without confirming compatibility. During removal, pull on the fitted ring, protect the seals if the bearing will be examined, and record the complete marking, orientation, sleeve, and measured mounting condition.
HSN reviews the complete model, brand, dimensions, seal and grease codes, clearance, quantity, and operating conditions before confirming availability. Photos or drawings can help verify special executions. If the original sealed spherical roller bearing is difficult to source, HSN can evaluate replacement or customized options based on a technical comparison rather than model similarity alone.
Inspection focuses on key requirements such as dimensions, hardness, and internal clearance. Depending on the application and customer specifications, additional checks may include material verification, rotational accuracy, vibration, noise, or flaw detection. Seal condition, corrosion protection, and packaging are also checked before shipment.
Are sealed designs lubricated for life?
Not automatically. Grease life depends on load, speed, temperature, contamination, seal performance, and the manufacturer’s relubrication guidance.
What does 2RS5 mean in the SKF example?
It identifies HNBR contact seals on both sides of that SKF spherical roller bearing.
Can a sealed bearing replace an open bearing?
Only after checking width, speed, temperature, housing space, lubrication, clearance, and mounting requirements.
What information should a buyer send?
Provide the complete model, dimensions, photos, quantity, load, speed, temperature, clearance, lubrication, application, and working conditions.
For detailed sealed spherical roller bearings beyond those listed above, or for other bearing types, contact HSN with the complete reference and technical requirements.
