The Application OF NACHI Bearings In The Metal Smelting Rolling Mill Industry

Creation On:2025/12/08

NACHI bearings are widely used in the rolling mills industry. Manufactured from high-purity bearing steel and utilizing advanced heat treatment processes, these bearings offer exceptional load-carrying capacity, wear resistance, and fatigue strength. They are extensively compatible with critical sections such as roughing mills, finishing mills, continuous casting roller tables, and coilers. This provides reliable assurance for steel enterprises to achieve stable, efficient, and continuous production.

Ⅰ.Bearing Types

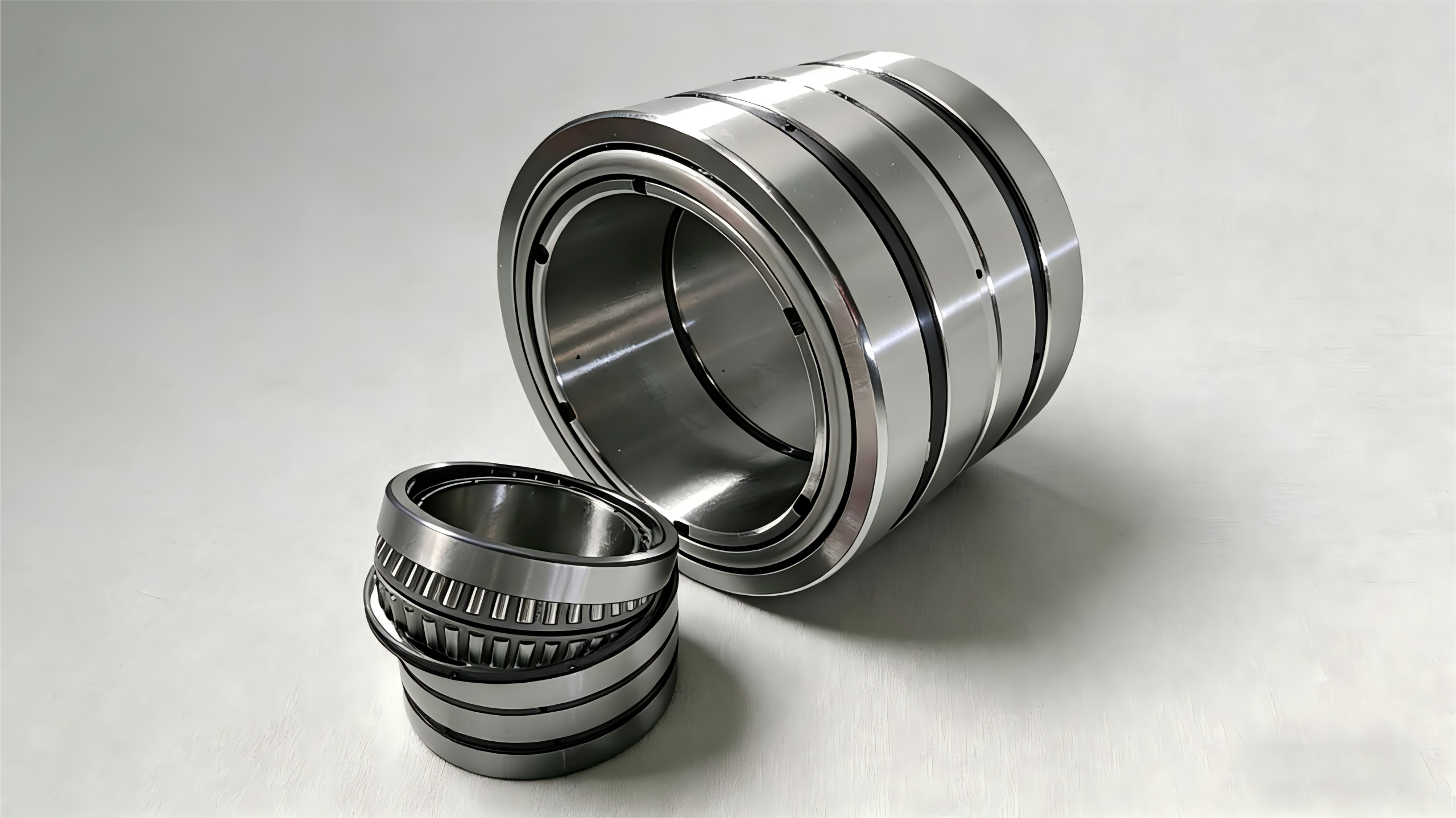

The primary bearing type NACHI applies in the rolling mills industry is the Four-Row Tapered Roller Bearing.Four-row tapered roller bearings are used on the roll necks of rolling mills. Their design provides maximum load-carrying capacity within a confined space while facilitating inspection and maintenance. In some bearings with larger inner diameters, pin-type cages and hollow rollers are employed to maximize load capacity.

Ⅱ.Examples of NACHI model numbers

  • Metric Four-row Tapered Roller Bearing Models


d

D

B

C

220KBV039

220

310

226

226

240KBV039

240

338

248

248

280KBV039

280

395

288

288

340KBV039

340

480

350

350

400KBV039

400

564

412

412

460KBV039

460

650

474

474

480KBV039

480

678

494

494

500KBV039

500

705

515

515

  • Imperial Four-row Tapered Roller Bearing Models


d

D

B

C

C27913

244.475

327.025

193.675

193.675

C29167

266.7

355.6

230.188

228.6

C24618

304.8

419.1

269.875

269.875

C29794

343.052

457.098

254

254

E17237

384.175

546.1

400.05

400.05

E17442

447.675

635

463.55

463.55

E12372

482.6

647.7

417.512

417.512

E11996

609.6

787.4

361.95

361.95

Remarks:

1. Regarding NACHI four-row tapered roller bearings except above-listed, please contact HSN.
2. For other types of bearings, please contact HSN.
3. This article is based on independent analysis of publicly available technical information and industry understanding, and aims to provide knowledge sharing. All brand names and trademarks mentioned in this article belong to their respective owners. HSN Bearing Group is an independent bearing supplier and technical service provide.
