Professional Analysis of FAG Spherical Roller Bearings

1. Structural Features of FAG Spherical Roller Bearings and the Meaning of Letters/Numbers in Their Designations

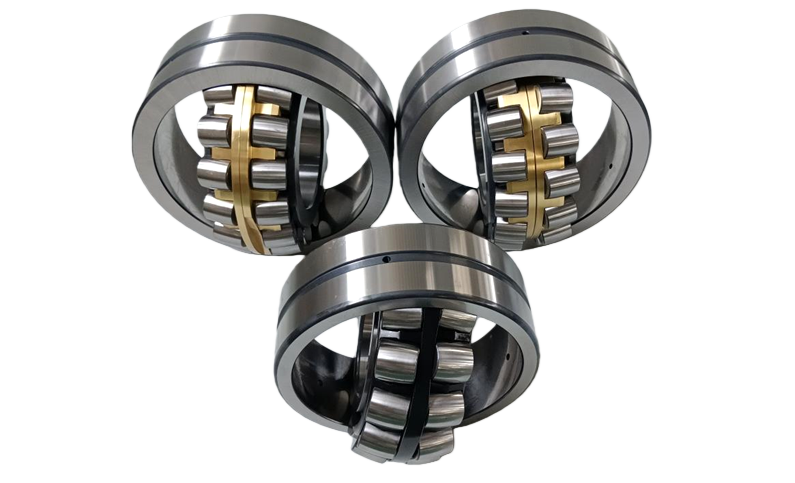

FAG spherical roller bearings are double-row self-aligning rolling bearings designed to provide excellent misalignment compensation and high load-carrying capacity. Their key structural characteristics include:

  • Double-row roller design:
    Two rows of symmetrically arranged barrel-shaped rollers can freely adjust their positions within the spherical raceway on the outer ring.
  • Spherical raceway:
    The outer ring has a common spherical raceway whose curvature center coincides with the bearing center.The inner ring has two spherical raceways, with their raceway centers inclined at a certain angle relative to the bearing’s vertical axis.
  • Inner ring structure:
    The inner ring structure varies depending on the bearing type.

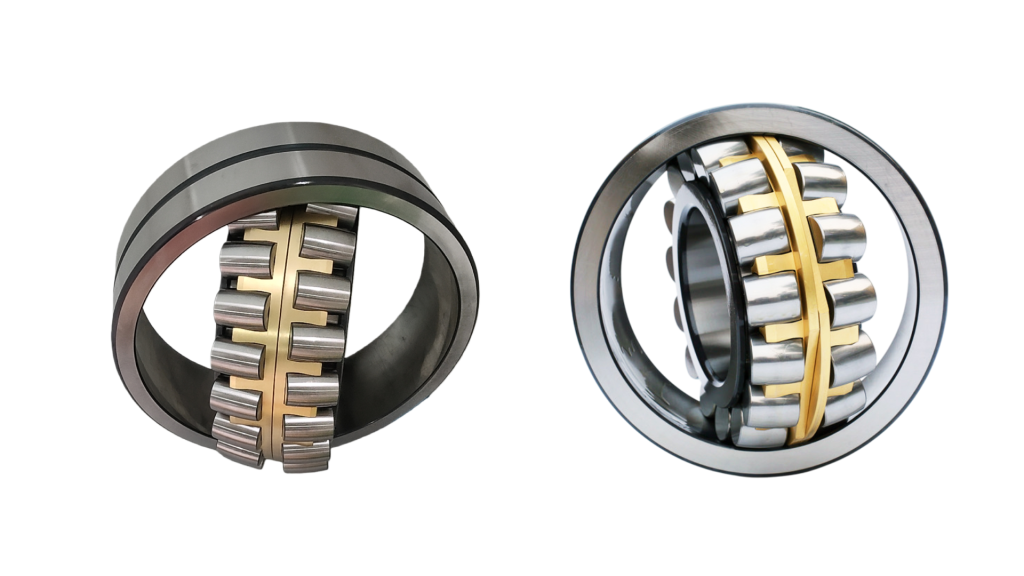

  • Cage types:
    The 222E and 223E series without suffixes generally use pressed steel cages.
    Other E-series bearings may use: Glass-fiber reinforced polyamide cages (suffix TVB) Machined solid brass cages (suffix M)
  • Bore types:
    Bearings are available with cylindrical bores or tapered bores. Tapered bore suffix: K

2. Types of FAG Spherical Roller Bearings and the Meaning of Each Structural Suffix

E1 – Reinforced design; no center flange; more rollers; higher load capacity
A / B – Improved internal design
BE – Standard design with a loose guide ring
K – Tapered bore, taper 1:12 for easier mounting/dismounting
K30 – Tapered bore, taper 1:30
S – Outer ring with lubrication groove and three lubrication holes
TVP – Glass-fiber reinforced polyamide cage
MB – Machined solid brass cage, inner-ring guided, suitable for heavy loads
MA – Machined solid brass cage, outer-ring guided
XL – X-Life long-life design; enhanced fatigue strength and operating reliability

3. Interpretation of FAG Spherical Roller Bearing Designations

  • Example 1: 22224-E1-K-C3
    22224 – Basic designation (spherical roller bearing, 22 series, bore diameter 120 mm)
    -E1 – Reinforced design with increased load capacity
    -K – Tapered bore, taper 1:12, easy mounting
    -C3 – Radial internal clearance greater than normal; suitable for temperature variations
  • Example 2: 23052-BE-XL-C3
    23052 – Basic designation (spherical roller bearing, 230 series, bore diameter 260 mm)
    -BE – Standard design with loose guide ring
    -XL – X-Life long-life design
    -C3 – Increased radial internal clearance
