Comprehensive Analysis of TIMKEN Tapered Roller Bearings

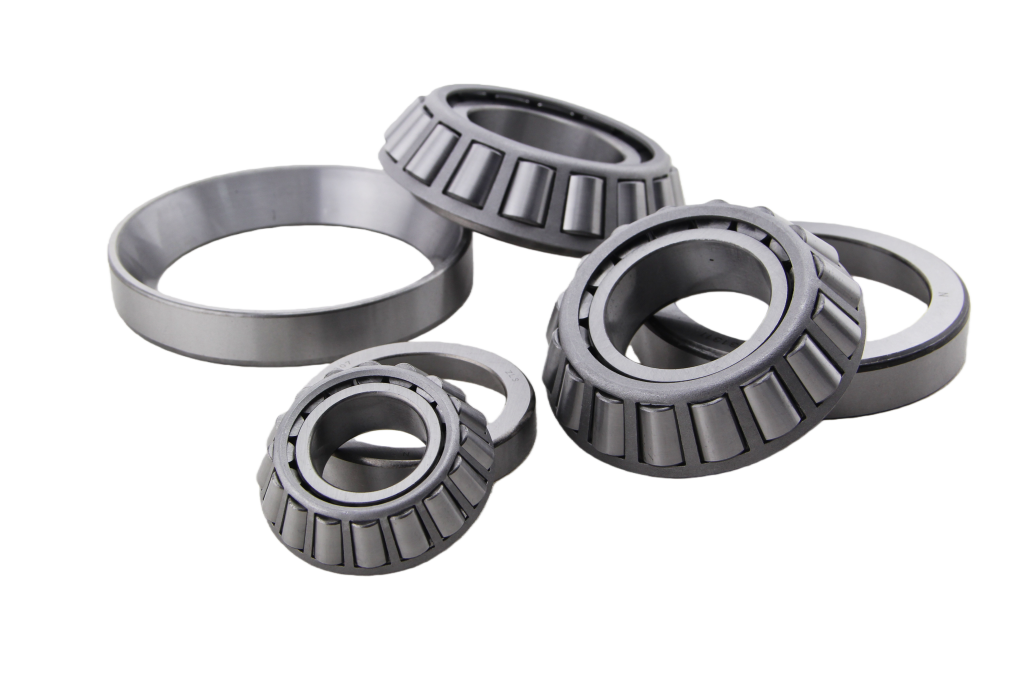

I. Basic Structure and Operating Principle

  1. Core Components
    Inner Ring (Cone): Features a tapered raceway and rotates together with the shaft.
    Outer Ring (Cup): Equipped with a tapered raceway and mounted in the bearing housing.
    Tapered Rollers:Truncated cone-shaped rolling elements that make line contact with the raceways.
    Cage: Separates and guides the rollers to ensure even distribution.
  2. Operating Principle
    (1) The generatrix lines of the tapered rollers and raceways intersect at a single point on the bearing axis, enabling pure rolling motion and theoreticallyeliminating sliding friction;
    (2) Capable of carrying combined radial and axial loads simultaneously, with the contact angle determining axial load capacity;
    (3) Single-row bearings must be installed in matched pairs (face-to-face or back-to-back) to balance axial forces.

II. Bearing Type and Designation System

  1. Single-Row Tapered Roller Bearings
    TS Type: The most basic and widely used design, available in both metric (ISO and “I”prefix) and inch dimensions, suitable for most general applications.
    TSF Type: Features a flanged outer ring for axial positioning and accurate alignment withthrough-bore housings.
    TSL Type: Incorporates DUO-FACE® integrated sealing design, simplifying maintenance procedures.

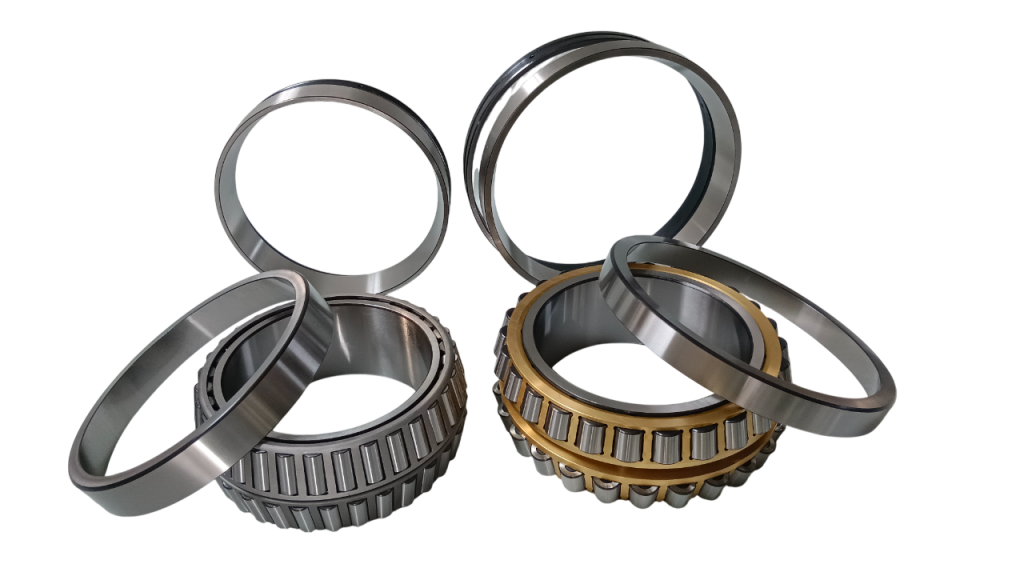

  2. Double-Row Tapered Roller Bearings
    TDO Type: Double outer ring design, suitable for applications dominated by overturning moments; can be mounted in fixed or floating arrangements.
    TDI Type: Double inner ring design, typically supplied with an outer ring spacer to provide preset internal clearance.
  3. Thrust Tapered Roller Bearings
    TTHD Type: Heavy-duty thrust bearings for high axial load applications.
    TTSP Type: Light-duty thrust bearing with cage.

III. Core Meaning of Bearing Designation Letters

  1. Prefix Letters in Numbering System (ABMA Standard)

PrefixDescription
LLight series
LMLight-medium series
MMedium series
HMHeavy-medium series
HHeavy series
HHExtra-heavy series

2. Key Suffix Letter Definitions

Suffix Description
A Distinguishes inner or outer ring from the basic number; may involve different radii, bore diameters, rolling elements, or widths.
B Outer ring: flanged outer ring, not interchangeable with the basic number; Inner ring: fitted with brass cage.
C Inner ring: single inner ring with same external dimensions as the basic number but different internal geometry; Outer ring: different dimensions, not interchangeable.
D Inner or outer ring: double inner or double outer ring, not interchangeable.

IV. Application Fields

  1. Commercial Vehicles & Construction Machinery                              Wheel hub bearings: Trucks, trailers, buses.                                            Axle assemblies: Provide stable support and precise power transmission.                                                                                    Construction machinery joints: Withstand vibration and impact loads.
  2. Industrial Machinery                                                                                Machine tool spindles: Provide high rigidity and rotational accuracy in precision machining.

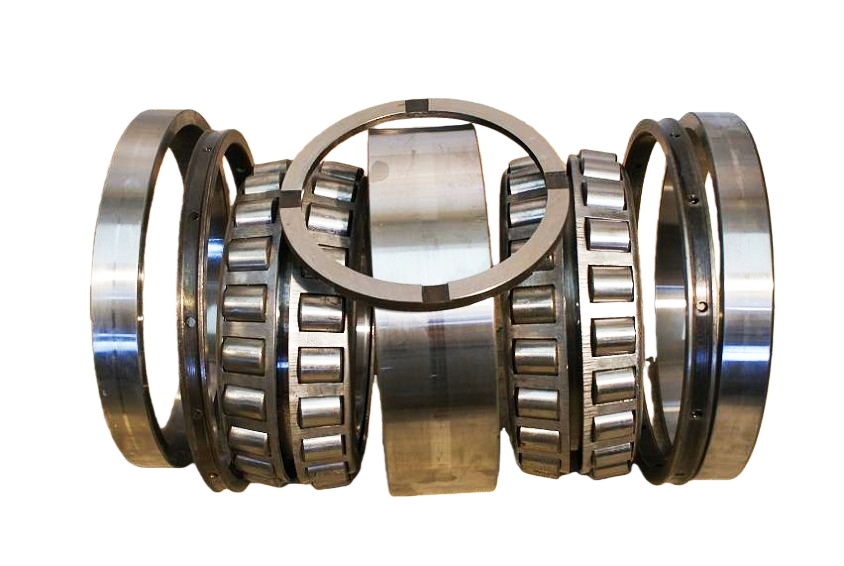

    Mining machinery: Excavators, crushers, mineral processing equipment. Rolling mills: Four-row tapered roller bearings for work roll support.
  3. Energy Equipment
    Wind turbines: Main shaft and gearbox support, extending service life.                                                                                                              Tunnel boring machines: Withstand massive cutterhead loads in harsh underground environments.
    Power equipment: Coal mills and motor bearings
  4. Rail Transportation
    Metro systems: Bogie axle box bearings with maintenance-free operation for millions of kilometers.
    Railway locomotives: High reliability for all-weather continuous operation.

V. Conclusion

Thanks to their unique tapered geometry and advanced manufacturing technology,tapered roller bearings have become indispensable components in industrial applications, delivering outstanding performance under heavy-load and combined-load conditions.
