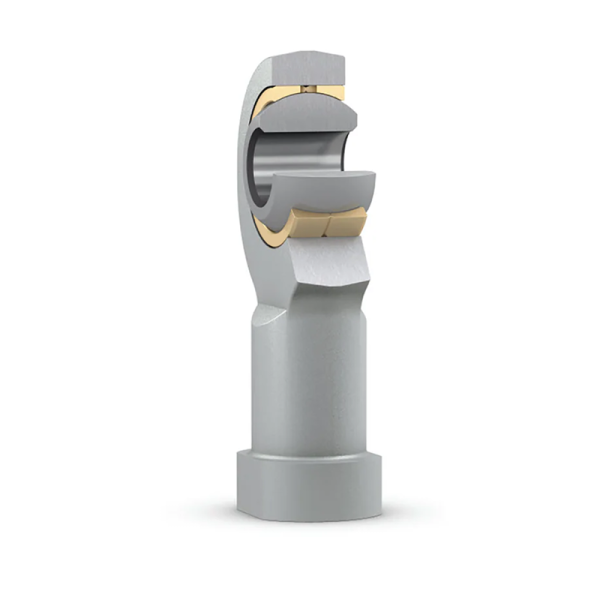

WE9

Bearing Overview:
  • Performance Features: HSN WE9 rod end bearing features smooth articulation, high load capacity, corrosion resistance, precise fit, durability, and reliable performance.
  • Interchangeability: Fully interchangeable with premium imported brands including SKF, FAG, and RBC.
  • Availability & Pricing: Competitively priced with ample stock available for immediate supply.
  • Delivery Time: 3-5 days for in-stock items; 15-30 days for custom orders.
  • Typical Applications: Agriculture, aerospace, automotive, wind power, and automation machinery equipment.

Description

Specifications

Bearing number: WE9

Brand: HSN/ OEM/ RBC

Category: Rod End

Weight and Dimensions of WE9

Bore B [mm]: 0.5625

Outside Diameter D [mm]: 1.125

Ball Width B [mm]: 0.687

Housing Width H [mm]: 0.536

Radial Static Limit Load: 26600 lbf

Axial Static Limit Load: 5370 lbf

Oscillating Load: 18100 lbf

Approx Weight m (lbs) : 0.135
