Spherical Roller Thrust Bearings

Spherical Thrust Roller Bearings are specifically designed to support heavy axial loads, making them ideal for applications where axial forces are predominant. It is ideal for applications that involve high axial loads and where misalignment can occur. Their design provides both strength and flexibility, making them suitable for demanding and heavy-duty applications.

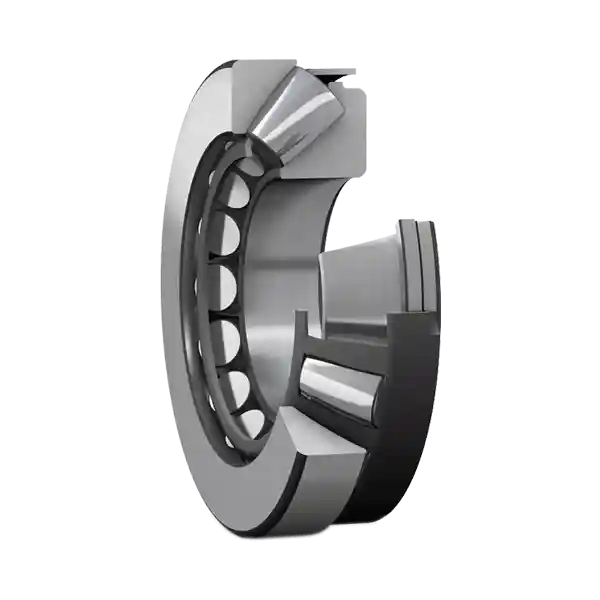

Spherical Thrust Roller Bearings

Spherical Thrust Roller Bearings are designed to handle high axial loads and accommodate misalignment. They consist of spherical rollers arranged in a way that allows them to support axial loads in one direction while also compensating for shaft misalignment.

Advantages of Spherical Thrust Roller Bearings:

Low friction
Long service life
High speed capability
High load carrying capacity
Accommodate misalignment

Specifications of Spherical Thrust Roller Bearings

Designation	Bore (mm)	O. D (mm)	Width (mm)	Weight (kg)
9039320	100	170	14	4,06
9039322	110	190	16	5,75
9039324K	120	210	18	7,48
9039428	140	280	31	25,00
9039336K	180	300	25	17,19
9039348K	240	380	29	32,64
9039352	260	420	32	52,60
9039352К	260	420	32	51,60
9039452	260	480	48	109.00
9039452Х	260	480	48	111.90
9039260	300	420	21	32,40
9039364Х	320	500	37	83,30
9039472Х	360	640	61	28,00
9039280	400	540	27	56.50
9039388	440	680	49	196.00
90394/500Х	500	870	81	577.00
90394/710Х	710	1220	113	1543.00
29412 E	60	130	42
29413 E	65	140	45
29414 E	70	150	48
29415 E	75	160	51
29416 E	80	170	54
29317 E	85	150	39
29417 E	85	180	58
29318 E	90	155	39
29418 E	90	190	60
29320 E	100	170	42
29420 E	100	210	67
29322 E	110	190	48
29422 E	110	230	73
29324 E	120	210	54
29424 E	120	250	78
29326 E	130	225	58
29426 E	130	270	85
29328 E	140	240	60
29428 E	140	280	85
29230 E	150	215	39
29330 E	150	250	60
29430 E	150	300	90
29332 E	160	270	67
29432 E	160	320	95
29334 E	170	280	67
29434 E	170	340	103
29236 E	180	250	42
29336 E	180	300	73
29436 E	180	360	109
29338 E	190	320	78
29438 E	190	380	115
29240 E	200	280	48
29340 E	200	340	85
29440 E	200	400	122
29244 E	220	300	48
29344 E	220	360	85
29444 E	220	420	122
29248	240	340	60
29348 E	240	380	85
29448 E	240	440	122
29252	260	360	60
29352 E	260	420	95
29452 E	260	480	132
29256	280	380	60
29356 E	280	440	95
29456 E	280	520	145
29260	300	420	73
29360 E	300	480	109
29460 E	300	540	145
29264	320	440	73
29364 E	320	500	109
29464 E	320	580	155
29268	340	460	73
29368	340	540	122
29468 E	340	620	170
29272	360	500	85
29372	360	560	122
29472 EM	360	640	170
29276	380	520	85
29376	380	600	132
29476 EM	380	670	175
29280	400	540	85
29380	400	620	132
29480 EM	400	710	185
29284	420	580	95
29384	420	650	140
29484 EM	420	730	185
29288	440	600	95
29388 EM	440	680	145
29488 EM	440	780	206
29292	460	620	95
29392	460	710	150
29492 EM	460	800	206
29296	480	650	103
29496 EM	480	850	224
292/500	500	670	103
293/500	500	750	150
294/500 EM	500	870	224
292/530 EM	530	710	109
293/530 EM	530	800	160
294/530 EM	530	920	236
292/560	560	750	115
294/560 EM	560	980	250
292/600 EM	600	800	122
294/600 EM	600	1 030	258
292/630 EM	630	850	132
293/630 EM	630	950	190
294/630 EM	630	1 090	280
294/670 EM	670	1 150	290
293/710 EM	710	1 060	212
294/710 EF	710	1 220	308
294/750 EF	750	1 280	315
292/800 EM	800	1 060	155
293/800 EM	800	1 180	230
294/800 EF	800	1 360	335
294/850 EF	850	1 440	354
294/900 EF	900	1 520	372
294/950 EF	950	1 600	390
294/1000 EF	1 000	1 670	402
294/1060 EF	1 060	1 770	426
29334-E1-XL	170	280	67	13.92
29412-E1-XL	60	130	42	2.45
29413-E1-XL	65	140	45	3.04
29414-E1-XL	70	150	48	3.7
29415-E1-XL	75	160	51	4.46
29416-E1-XL	80	170	54	5.32
29317-E1-XL	85	150	39	2.62
29417-E1-XL	85	180	58	6.32
29318-E1-XL	90	155	39	2.68
29418-E1-XL	90	190	60	7.3
29320-E1-XL	100	170	42	3.496
29420-E1-XL	100	210	67	9.87
29322-E1-XL	110	190	48	5.06
29422-E1-XL	110	230	73	12.78
29324-E1-XL	120	210	54	7
29424-E1-XL	120	250	78	16.31
29326-E1-XL	130	225	58	8.668
29426-E1-XL	130	270	85	20.48
29328-E1-XL	140	240	60	10
29428-E1-XL	140	280	85	21.6
29230-E1-MB	150	215	39	4.485
29330-E1-XL	150	250	60	10.22
29430-E1-XL	150	300	90	26.54
29232-E1-MB	160	225	39	4.6
29332-E1-XL	160	270	67	13.7
29432-E1-XL	160	320	95	37.5
29234-E1-MB	170	240	42	5.545
29434-E1-XL	170	340	103	38.64
29236-E1-MB	180	250	42	6.187
29336-E1-XL	180	300	73	17.994
29436-E1-XL	180	360	109	45.2
29238-E1-MB	190	270	48	8.449
29338-E1-XL	190	320	78	22.183
29438-E1-XL	190	380	115	53.88
29240-E1-MB	200	280	48	8.981
29340-E1-XL	200	340	85	27.14
29440-E1-XL	200	400	122	66.06
29244-E1-MB	220	300	48	9.5
29344-E1-XL	220	360	85	29.78
29444-E1-XL	220	420	122	68.3
29248-E1-MB	240	340	60	16.913
29348-E1-XL	240	380	85	32.32
29448-E1-XL	240	440	122	73.64
29252-E1-MB	260	360	60	18.74
29352-E1-XL	260	420	95	47.06
29452-E1-XL	260	480	132	94.56
29256-E1-MB	280	380	60	19.03
29356-E1-XL	280	440	95	48.84
29456-E1-XL	280	520	145	124.44
29260-E1-MB	300	420	73	30.32
29360-E1-XL	300	480	109	66.1
29460-E1-XL	300	540	145	129.86
29264-E1-MB	320	440	73	31.52
29364-E1-XL	320	500	109	68.16
29464-E1-XL	320	580	155	163.06
29268-E1-MB	340	460	73	32.88
29368-E1-XL-MB	340	540	122	103.3
29468-E1-XL	340	620	170	205.52
29272-E1-MB	360	500	85	48.68
29372-E1-XL-MB	360	560	122	109.34
29472-E1-XL-MB	360	640	170	230.12
29276-E1-MB	380	520	85	50.7
29376-E1-XL-MB	380	600	132	135.8
29476-E1-XL-MB	380	670	175	257.5
29280-E1-MB	400	540	85	52.48
29380-E1-XL-MB	400	620	132	143.16
29480-E1-XL-MB	400	710	185	304
29284-E1-MB	420	580	95	74.22
29384-E1-XL-MB	420	650	140	162.5
29484-E1-XL-MB	420	730	185	317
29288-E1-MB	440	600	95	90.76
29388-E1-XL-MB	440	680	145	184
29488-E1-XL-MB	440	780	206	408
29292-E1-MB	460	620	95	77.98
29392-E1-XL-MB	460	710	150	208.5
29492-E1-XL-MB	460	800	206	424.5
29296-E1-MB	480	650	103	96
29396-E1-XL-MB	480	730	150	214.5
29496-E1-XL-MB	480	850	224	529
292/500-E1-MB	500	670	103	100
293/500-E1-XL-MB	500	750	150	222
294/500-E1-XL-MB	500	870	224	545.5
292/530-E1-MB	530	710	109	119
293/530-E1-XL-MB	530	800	160	275.7
294/530-E1-XL-MB	530	920	236	640.5
292/560-E1-MB	560	750	115	138
294/560-E1-XL-MB	560	980	250	779.5
292/600-E1-MB	600	800	122	165
293/600-E1-XL-MB	600	900	180	459
294/600-E1-XL-MB	600	1030	258	872
292/630-E1-MB	630	850	132	205.5
293/630-E1-XL-MB	630	950	190	459
294/630-E1-XL-MB	630	1090	280	1056
292/670-E1-MB	670	900	140	245.5
293/670-E1-XL-MB	670	1000	200	526.8
294/670-E1-XL-MB	670	1150	290	1211
292/710-E1-MB	710	950	145	259.7
293/710-E1-XL-MB	710	1060	212	628.11
294/710-E1-XL-MB	710	1220	308	1447
292/750-E1-MB	750	1000	150	316
293/750-E1-XL-MB	750	1120	224	738.5
294/750-E1-MB	750	1280	315	1648.7
292/800-E1-MB	800	1060	155	362.5
293/800-E1-XL-MB	800	1180	230	817.5
294/800-E1-MB	800	1360	335	1960
292/850-E1-MB	850	1120	160	417
293/850-E1-MB	850	1250	243	921
294/850-E1-MB	850	1440	354	2342
294/900-E1-MB	900	1520	372	2735.8
292/950-E1-MB	950	1250	180	574.4
294/950-E1-MB	950	1600	390	3128
292/1000-E1-MB	1000	1320	190	1 g
294/1000-E1-MB	1000	1670	402	3514
292/1060-E1-MB	1060	1400	206	838
294/1060-E1-MB	1060	1770	426	4201.2
29412-E1-XL-N1	60	130	42	2.54
29413-E1-XL-N1	65	140	45	3.08
29414-E1-XL-N1	70	150	48	3.6
29415-E1-XL-N1	75	160	51	4.4
29416-E1-XL-N1	80	170	54	5.32
29417-E1-XL-N1	85	180	58	6.405
29418-E1-XL-N1	90	190	60	7.3
29320-E1-XL-N1	100	170	42	3.416
29420-E1-XL-N1	100	210	67	9.8
29322-E1-XL-N1	110	190	48	5.123
29422-E1-XL-N1	110	230	73	12.82
29324-E1-XL-N1	120	210	54	7
29424-E1-XL-N1	120	250	78	16.035
29326-E1-XL-N1	130	225	58	8.663
29426-E1-XL-N1	130	270	85	20.775
29328-E1-XL-N1	140	240	60	9.98
29428-E1-XL-N1	140	280	85	21.58
29330-E1-XL-N1	150	250	60	10.22
29430-E1-XL-N1	150	300	90	26.48
29332-E1-XL-N1	160	270	67	13.64
29432-E1-XL-N1	160	320	95	31.274
29334-E1-XL-N1	170	280	67	13.92
29434-E1-XL-N1	170	340	103	37.9
29336-E1-XL-N1	180	300	73	17.983
29436-E1-XL-N1	180	360	109	45.2
29338-E1-XL-N1	190	320	78	21.712
29438-E1-XL-N1	190	380	115	53.88
29340-E1-XL-N1	200	340	85	27.62
29440-E1-XL-N1	200	400	122	66.06
29344-E1-XL-N1	220	360	85	29.78
29444-E1-XL-N1	220	420	122	68.68
29348-E1-XL-N1	240	380	85	32.32
29448-E1-XL-N1	240	440	122	73.64
29252-E1-N1-MB	260	360	60	18.74
29352-E1-XL-N1	260	420	95	45.38
29452-E1-XL-N1	260	480	132	94.56
29356-E1-XL-N1	280	440	95	48.84
29456-E1-XL-N1	280	520	145	124.44
29456-E1-XL-N1-THO	280	520	145	124.44
29360-E1-XL-N1	300	480	109	66.1
29460-E1-XL-N1	300	540	145	129.86
29460-E1-XL-THI	300	540	145	129.86
29364-E1-XL-N1	320	500	109	68.16
29464-E1-XL-N1	320	580	155	162.7
29464-E1-XL-THI	320	580	155	162.5
29468-E1-XL-N1	340	620	170	205.52
29472-E1-XL-N1-MB	360	640	170	230.12
29480-E1-XL-MB-THI	400	710	185	304
29480-E1-XL-N1-MB	400	710	185	304
29284-E1-N1-MB	420	580	95	74.22
29488-E1-XL-MB-THI	440	780	206	407.5
29492-E1-XL-N1-MB	460	800	206	424.5
29496-E1-XL-MB-THI	480	850	224	529
29496-E1-XL-N1-MB	480	850	224	544
292/500-E1-N1-MB	500	670	103	100
293/500-E1-XL-N1-MB	500	750	150	222
294/530-E1-XL-MB-THI	530	920	236	640.5
294/530-E1-XL-N1-MB	530	920	236	640.5
294/560-E1-XL-MB-THI	560	980	250	778
294/630-E1-XL-MB-THI	630	1090	280	1056
294/630-E1-XL-N1-MB	630	1090	280	1055
